A Nextflow plugin that provides a web-based interface for visualizing and exploring Nextflow pipeline executions directly in your browser.

Overview

nf-cachebrowser is a powerful Nextflow plugin that allows you to visualize pipeline executions through an intuitive web interface. Monitor your workflows, explore execution details, and analyze pipeline performance without leaving your browser.

Features

  • 🌐 Web-based Interface - Access pipeline execution data through a modern web UI

  • 📊 Real-time Monitoring - Track running pipelines in real-time (only in not blocking supported storages)

  • 🔍 Detailed Execution View - Explore individual process executions and their outputs

  • 📈 Performance Analytics - Analyze execution times, resource usage, and bottlenecks

  • 🗂️ Cache Management - Browse and manage Nextflow work directories and cached results

  • 🔄 Resume Capabilities - Visualize pipeline resume points and execution flow

  • 📱 Responsive Design - Works seamlessly on desktop and mobile devices

Screenshots

First, run some pipeline with --resume flag

nextflow run hello --resume

After some executions run the plugin:

nextflow plugin nf-cachebrowser:run

The run command execute a web server at port 9999 so you can navigate to http://localhost:9999

INFO

By the moment, to close the web server you need to send a kill signal (or Ctrl+C)

screenshot1

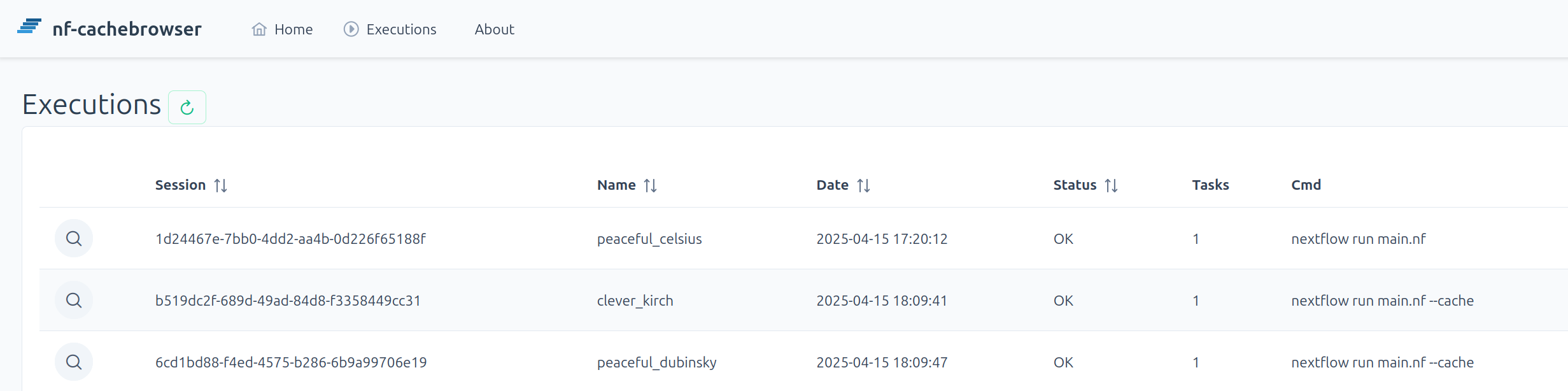

Figure 1. executions list
screenshot2

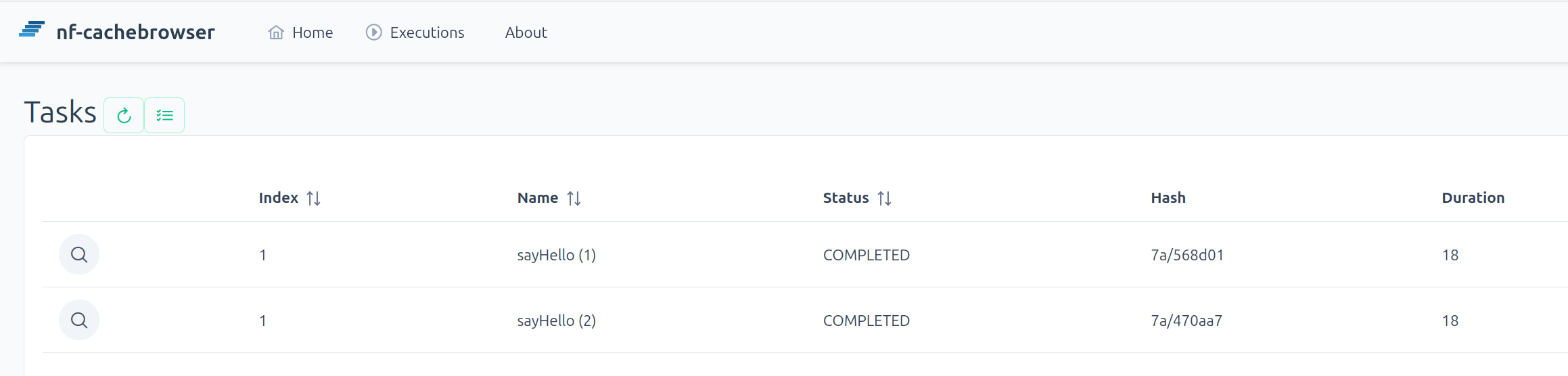

Figure 2. execution tasks list
screenshot3

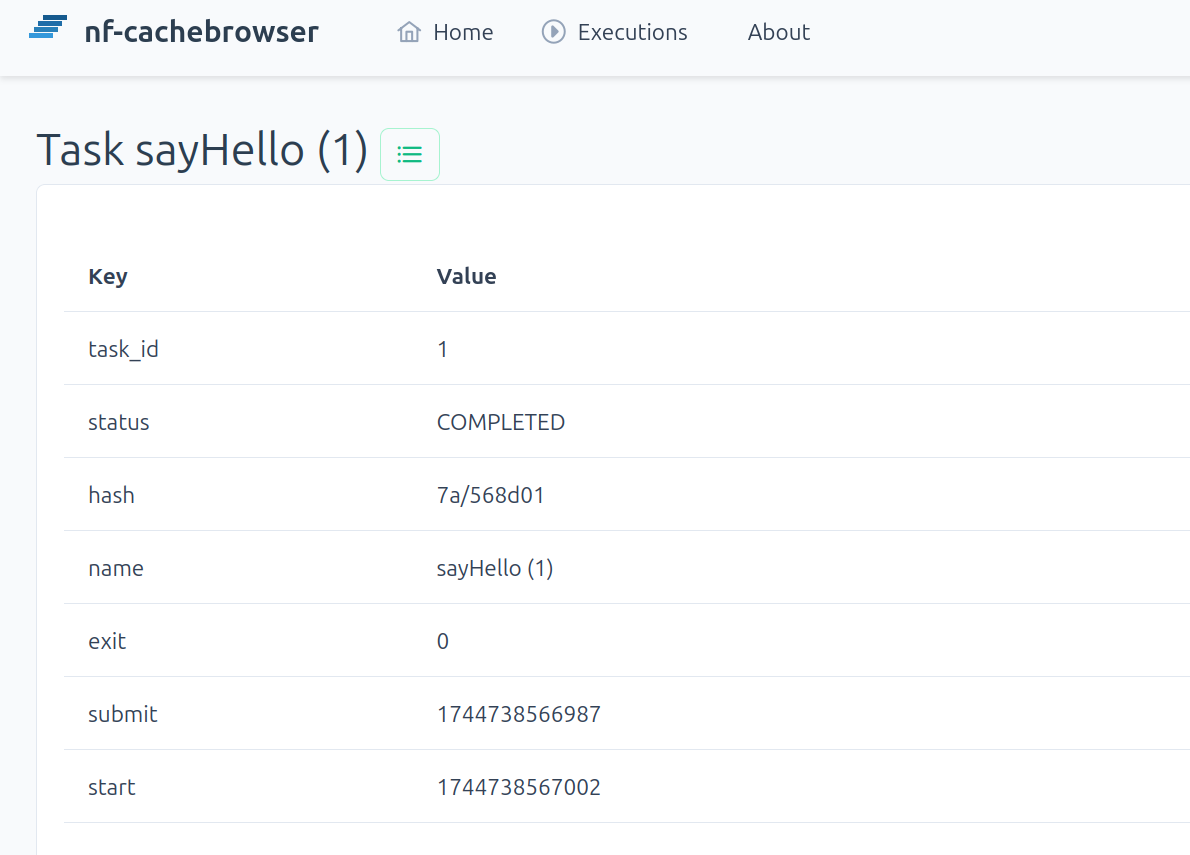

Figure 3. task detail

Parameters

  • -p --port , the web server port, 9999 by default

  • --directory, the directory where .nextflow is located, current dir by default

Local Storage (default)

nf-cachebrowser is able to visualize different "storages".

Typical storage is "local", the default implementation of Nextflow, using an embedded database to store all executions details located in the .nextflow/cache folder

WARNING

Due the blocking nature of the library used by Nextflow, two process can’t read/write at the same time the database, so use nf-cachebrowser once your pipelines are ended.

DuckDB Storage (experimental)

Incremental Steps has been working in nf-duckdbcache plugin to reemplace the default implementation.

DuckDB allows multiple process to access to the database so it expected you can execute pipelines and at the same time use nf-cachebrowser

Postgres Storage (TODO!!)

In the same way as DuckDB database, we’re working in a plugin to use Postgres as cache. nf-cachebrowser will allow inspect this storage
